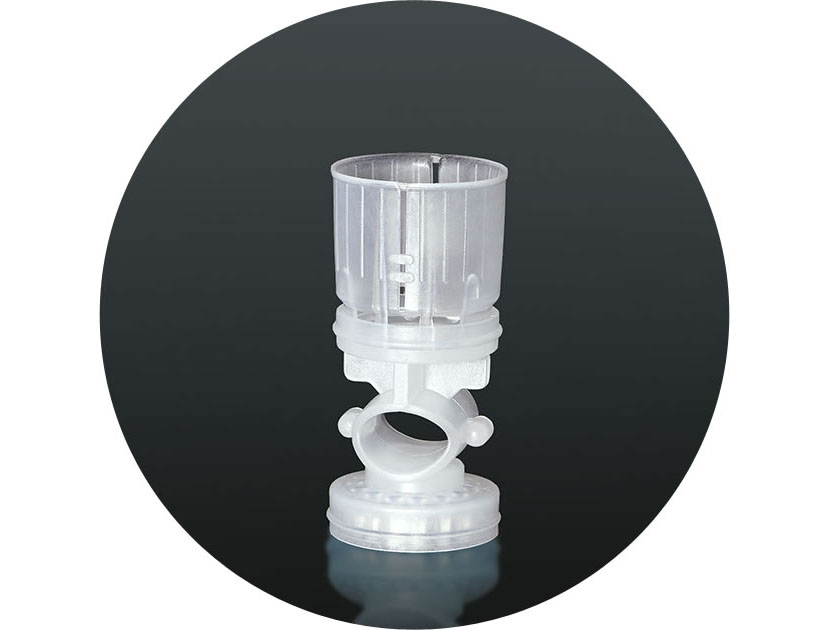

Super G® 16 and 20 gauge
Unbeatable plastic Wad for hunting and shooting
Pre-set fracture cup with four parts anchored to the Wad.
Unbeatable for its excellent ballistic performance.
WAD mm 18
for 28/29 g lead shots*
16
5.000
WAD mm 21
for 26/27 g lead shots*
16
5.000
WAD mm 15
for 28/29 g lead shots*
20
5.000
WAD mm 21
for 24/26 g lead shots*
20
5.000
WAD mm 25
for 20/22 g lead shots*
20
5.000
*Warning:
the quantity of shots is just indicative. It depends, for example, on powder volume or on base wad's geometry so we strongly suggest you to try some samples in order to find the right quantity of shots you can load.
FOR RETRIEVED CASES OR CASES WITH INCREASED INNER DIAMETER
If the Wad is loose in the Case, the gas seal will still be assured.
This tolerance can be eliminated by using a taller Wad, so as to squash the tubular section when edging; this action widens the Wad base, thus enabling it to compensate for the larger inner Case diameter (see Seal Ac- tion picture).
CARTRIDGE CLOSING BY ROUND OR CRIMP EDGE
For content or case size needs, thanks to its central elasticity, “Super G” Wad enables to obtain (without any inconveniences and leaving ballistic data unchanged) all of the heights ranging from open to partially flattened damper (see pictures Nos. 2 and 3).
For crimp edging, we advise to use about 11 mm case, reckoned from the lead level to the case rim (see picture No. 4).
If the lead is lower, a taller Wad must be used.
MAIN FEATURES:
- CUP anchored to the Wad, with such pre-set fractures as to withstand the forced actions of automatic loading.
- 1 mm GUIDE RING - minimum friction along the barrel.
- TUBULAR ELEMENT reducing impact force and leaving shot spherical form unchanged - self-adjusting on closing, thus keeping the load at constant pressure.
- BEEHIVE-SHAPED STRUCTURE determining the heights of 22 - 25 - 27 mm Super G Wads.
- DISC conceived for the deflagration instant, enlarging the Wad base, to ensure safer gas seal. Excellent action to re-use retrieved Cases or Cases with increased inner diameter.
- BALANCING KNUCKLES: the Wad pressed by the gas force (see Seal Action picture) enables lead to evenly go along the barrel for excellent spreads.
- EGMENT preventing the exit of solitary powder slices, and offering better adherence to the Case; moreover, thanks to its self-reducing ca- pability, enables the Wad to be loaded in cardboard Cases too.
